GZ-3AR Refractory gunning machine

GZ-3AR Refractory gunning machine

GZ-3AR refractory gunning machine is specifically designed for refractory dry-mix shotcrete gunning applications with air motor drive. With this GZ-3AR, you can get low dust, low bound and high performance spraying flow in nozzle.
Features
1. Variable Output with ABB variable frequency drive. 5 cylinders piston air motor drive
2. Bag cutter and flat hopper with vibrator
3. Collect dust bag
4. Clean dust gun
5. Heavy-duty solid wheels
6. Coulping and clamp
7. New type pre-dampening nozzle assy
8. Blast rubber hose
Technology Sheet

Rated Output1-3m3 /h (2-6 ton/h)
Max. Horizontal Conveying Distance100m
Max. Aggregate SizeΦ10 mm
Conveying Hose Inner Diameter38mm
Operating air Pressure0.2-0.4MPa(29-58PSI)
Air Consumption10-11m3/min
Engine 4kw
Material Charging Height1.1m
Rotor Speed13.2r/min
Overall Dimension(L×W×H)1.13×0.54×1.1m
Weight430kg
Application
GZ-3AR refractory gunning machine can be used for refractory spraying applications, as well as for concrete shotcrete application.

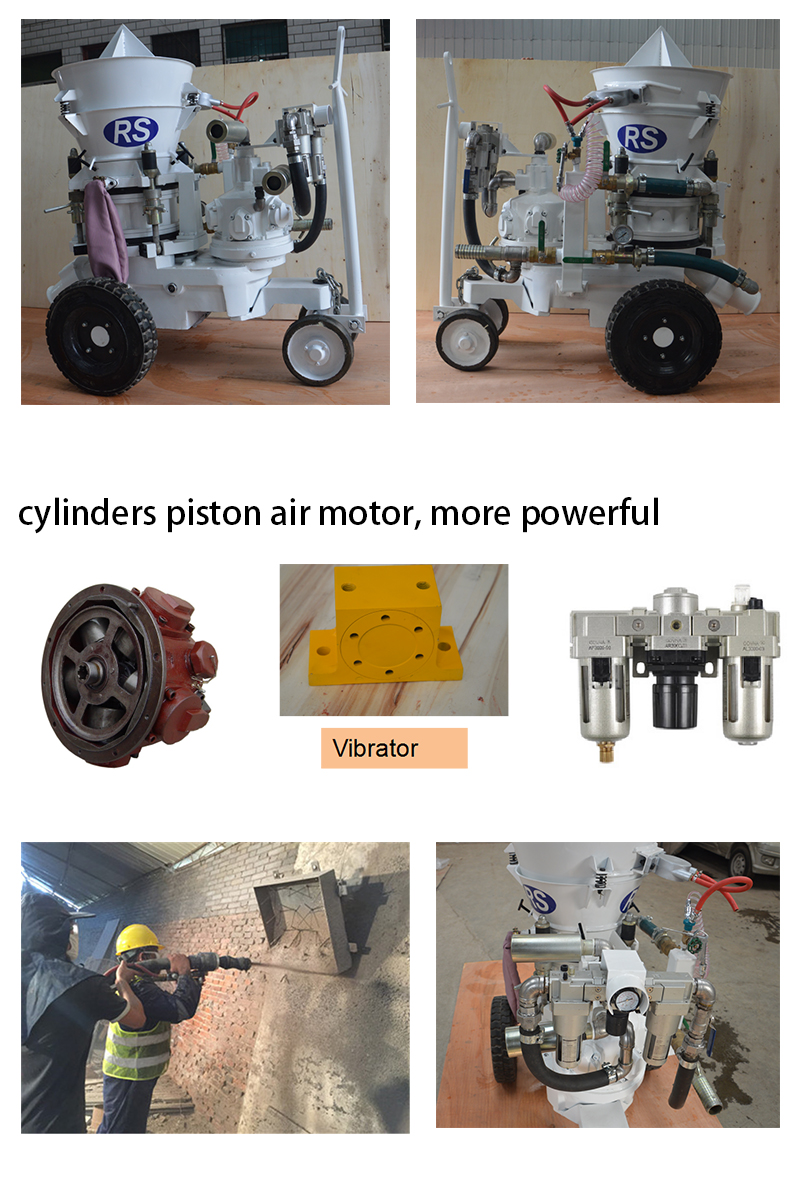

Pictures
