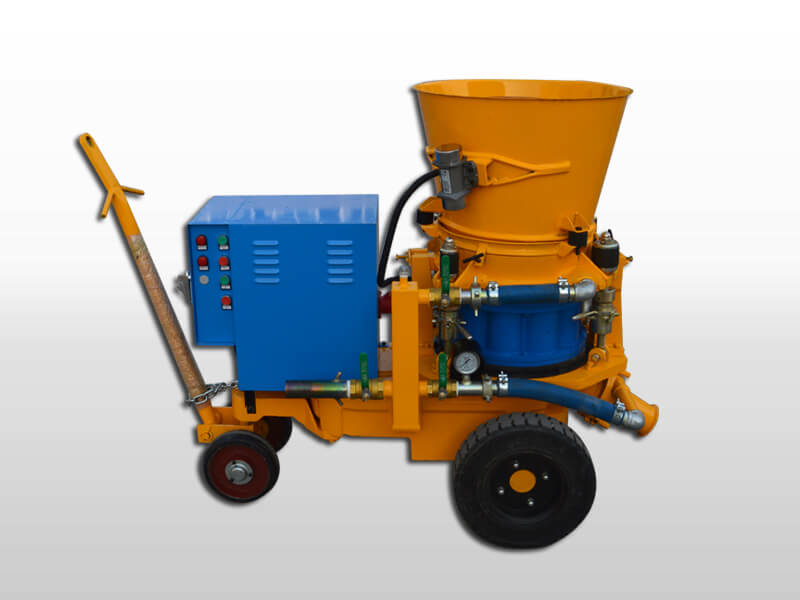

GZ-5ER Refractory gunning machine

GZ-5ER Refractory gunning machine

GZ-5ER Refractory gunning machine is specifically designed for Refractory Dry-mix shotcrete applications, as well as for concrete shotcrete application. With this WZ-5E-R, you can get low dust and high performance spraying flow in nozzle.
Features


1. Coulping and clamp;
2. Light weight nozzle;
3. Blast rubber hose;

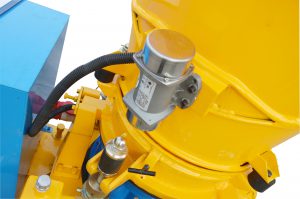

4. Bag cutter and flat hopper with vibrator;
5. Collect dust bag;
6. Clean dust gun;
7. GZ-5ER refractory gunning machine with heavy-duty solid wheels;
8. Variable Output with variable-frequency drive;

Technology Sheet

Specification (with Electric motor drive):
Rated Output1-5m3 /h(2-10ton/h)
Max. Horizontal Conveying Distance100m
Max. Aggregate SizeΦ15mm
Conveying Hose Inner Diameter51mm
Operating air Pressure0.2-0.4MPa(29-58PSI)
Air Consumption8~9m3/min(285-325CFM)
Motor Power5.5kW
Voltage3 phase,380V,50Hz
Material Charging Height1.1m
Rotor Speed0-13.2r/min
Overall Dimension(L×W×H)1.32×0.75×1.2m
Weight720kg
Application
GZ-5ER Refractory gunning machine can be used for refractory spraying applications, as well as for concrete shotcrete application.
